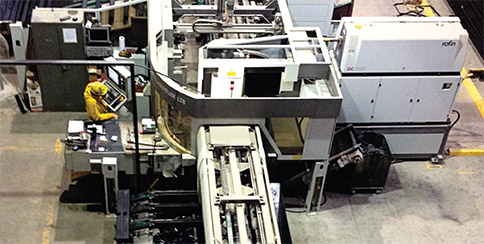

We have expanded our tube laser capacity to meet your needs.

Laser Specifications
LT-8      3500 Watt     Emporia, KS and Norfolk, NE
  • Round Tube: ½”dia – 8.63”dia.
  • Square Tube: ½” x ½” – 7.87” x 7.87”
  • Max Material Cutting: 23.5 lbs/ft with 5/8” thick material
  • 27’-10” in feed and 25’-3” out feed
  • 3D cutting to 45° angle max
Jumbo-14     4500 Watt     Greeley, CO
  • Round Tube: 1.25”dia – 14”dia.
  • Square Tube: 1.25” x 1.25” – 10.25” x 10.25”
  • Structural Shapes: 3” x 3” – 11.75” x 7.75”
  • Max Material Cutting: 67 lbs/ft with 3/4” thick material
  • 41’-0” in feed and 41’-0” out feed
  • 3D cutting to 45° angle max
  • Drill & Tap up to ½” dia.

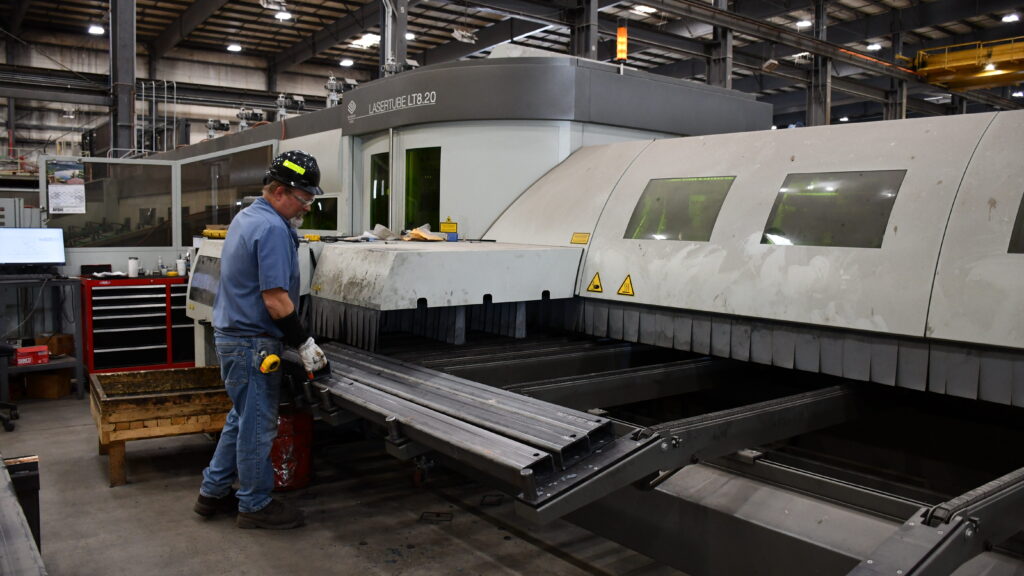

Jumbo-20     3500 Watt     Norfolk, NE
  • Round Tube: 3”dia – 20”dia.
  • Square Tube: 3” x 3” – 16” x 16”
  • Rectangular Tube: 4” x 2” – 20” x 12”
  • Structural Shapes: 3” x 3” – 20” x 12”
  • Max Material Cutting: 135 lbs/ft with 5/8” thick material
  • 47’-6” in feed and 41’-0” out feed
  • 3D cutting to 45° angle max
